Description

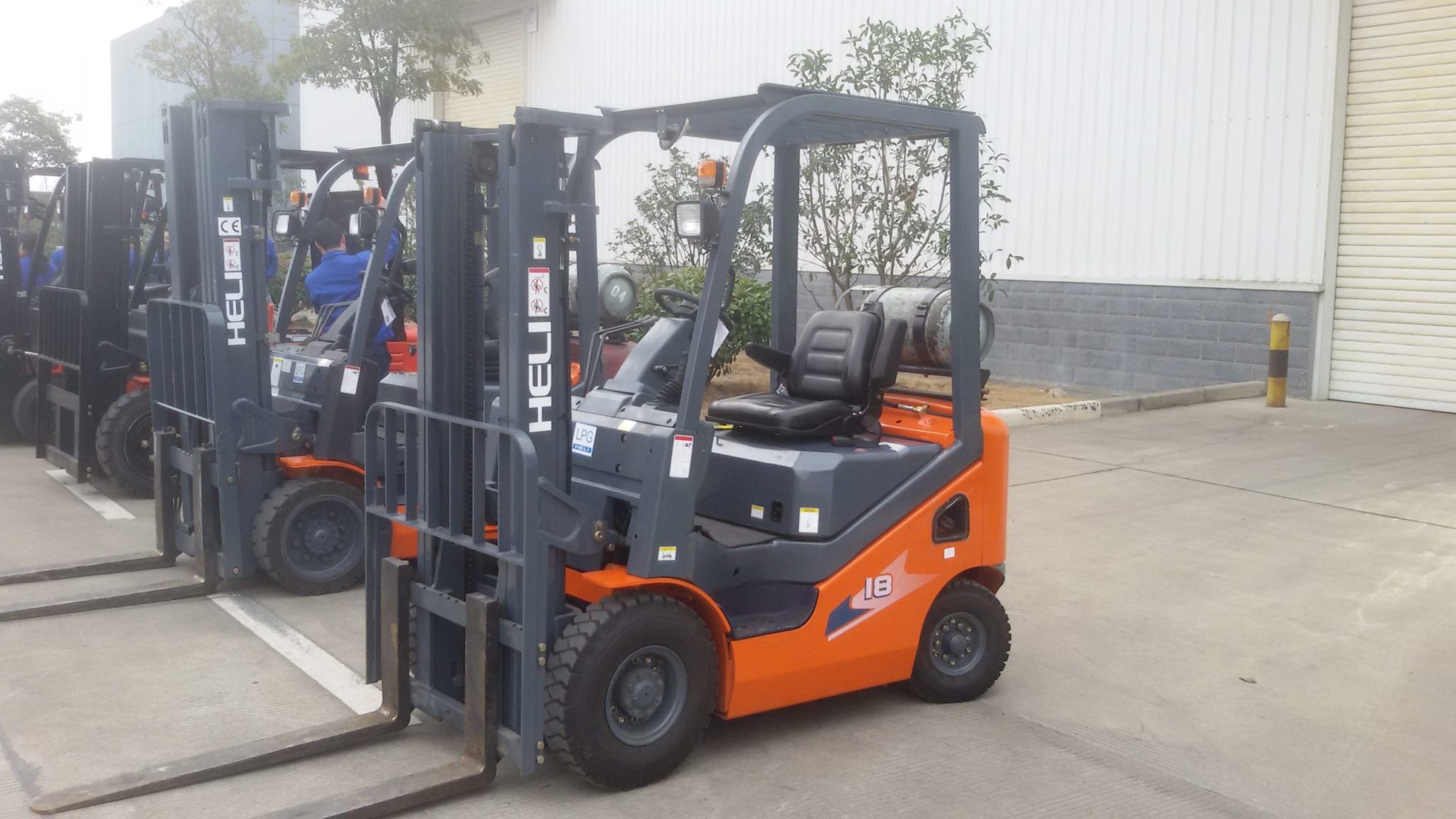

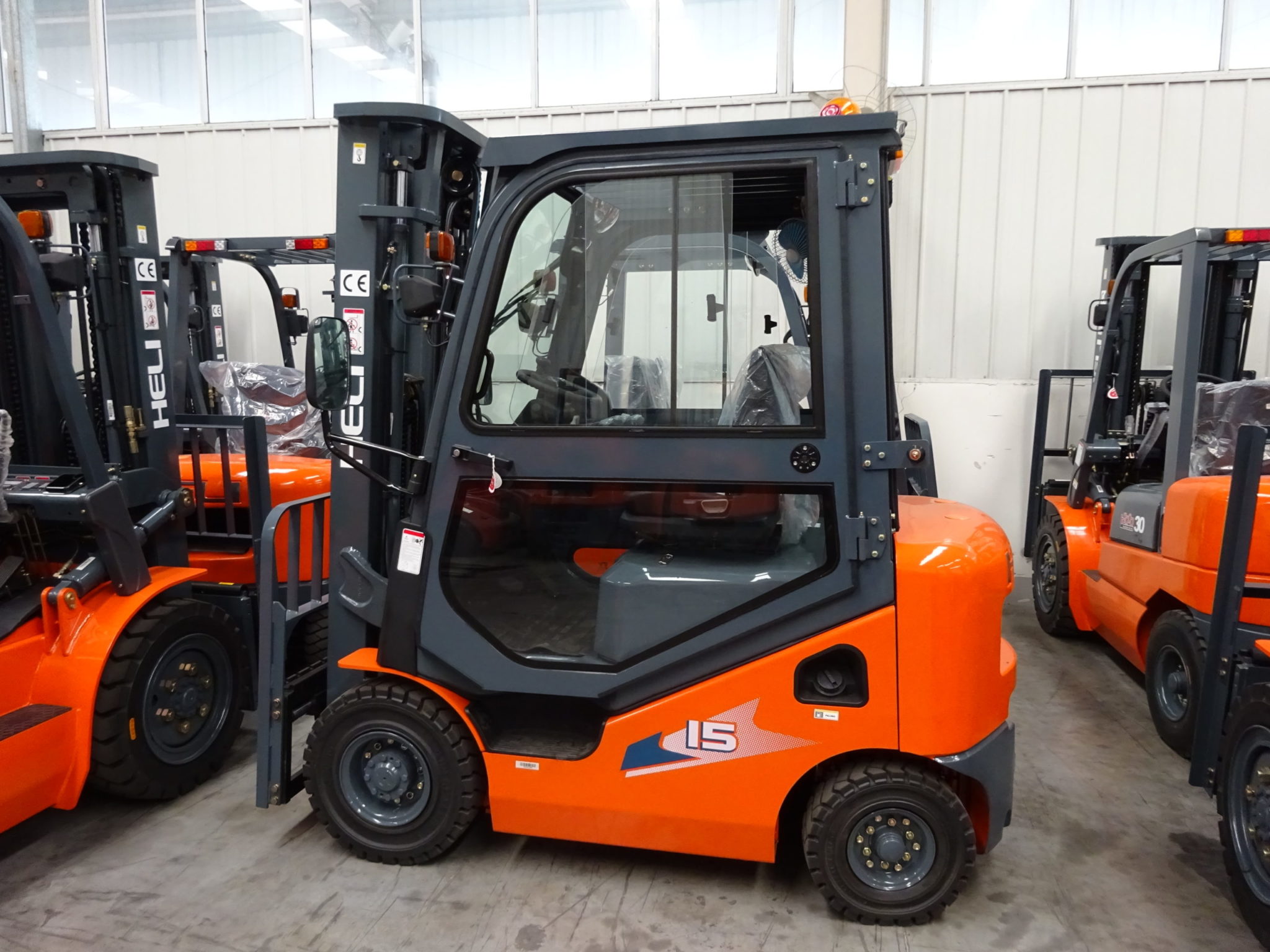

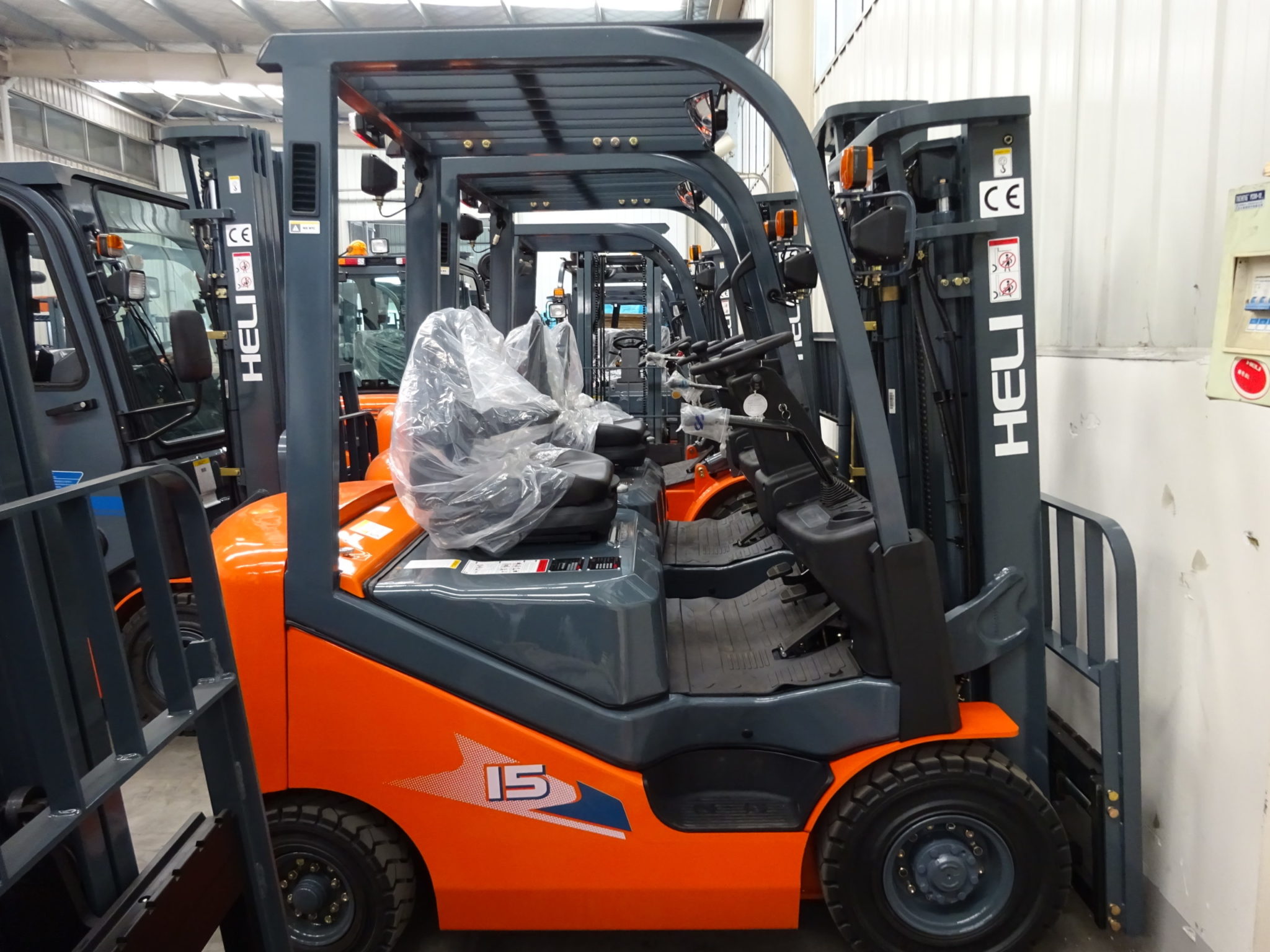

Heli H3 Series 1-1.8T Diesel
Brand new Heli forklift. Heavy duty workhorse for the toughest of environments. We can custom order anything to suit your needs. Just let us know what you require and we can accommodate!
Save your back manually moving pallets, zip around in half the time!
Features
- Load Capacities ranging from 1-1.8T
- Various Mast Heights for custom needs.
- Brand new machine
- Tilt function
- Side-shift Function available
- Overhead guard
- Solid or pneumatic tyres
- 12 Month Warranty
Brand new Heli H3 Series 1-1.8T Forklift. This is the diesel model with a high quality japanese Kubota V2403 4cylinder diesel engine. Perfect for non stop operation, these units wont let you down.
| Model | unit | CPCD10 | CPCD15 | CPCD18 | |
| Power Unit | Diesel | ||||
| Rated Capacity | kg | 1000 | 1500 | 1750 | |
| Load Center | mm | 500 | |||
| Standard lift height | mm | 3000 | |||
| Free lift height | mm | 152 | 155 | 155 | |
| Overall length(with fork/without fork) | mm | 3197/2277 | 3201/2281 | 3219/2299 | |
| Overall width | mm | 1070 | |||
| Overall height(overhead guard) | mm | 2140 | |||
| Wheel base | mm | 1450 | |||
| Total Weight | kg | 2458 | 2760 | 2890 | |
Specifications are as the table below. Options & other attachments are available.The chart below specify different motor options available for the machine.
| Engine | Power (KW) | Torque (NM) | Displacement | Emissions |
| Kubota V2403 | 34.1 | 155.9 | 2.4L 4 Cylinder | Euro III |
