Description
Brand new Heli Diesel forklift. In Stock now ready for delivery. Purchase your new machine before tax time! Heavy duty workhorse for the toughest of environments. We can custom order anything to suit your needs. Just let us know what you require and we can accommodate!
Save your back manually moving pallets, zip around in half the time!
Features :
- Huge 4700mm Lift height
- Highly sought after 3 Stage Container Mast
- Brand new machine
- Tilt function
- Side-shift
- Fork Positioner
- Solid tyres
- 12 Month Warranty
This price will not last! While stocks last. Contact us now to arrange a viewing of the machine!
Don’t want to buy outright upfront? We have rental & finance options available also.

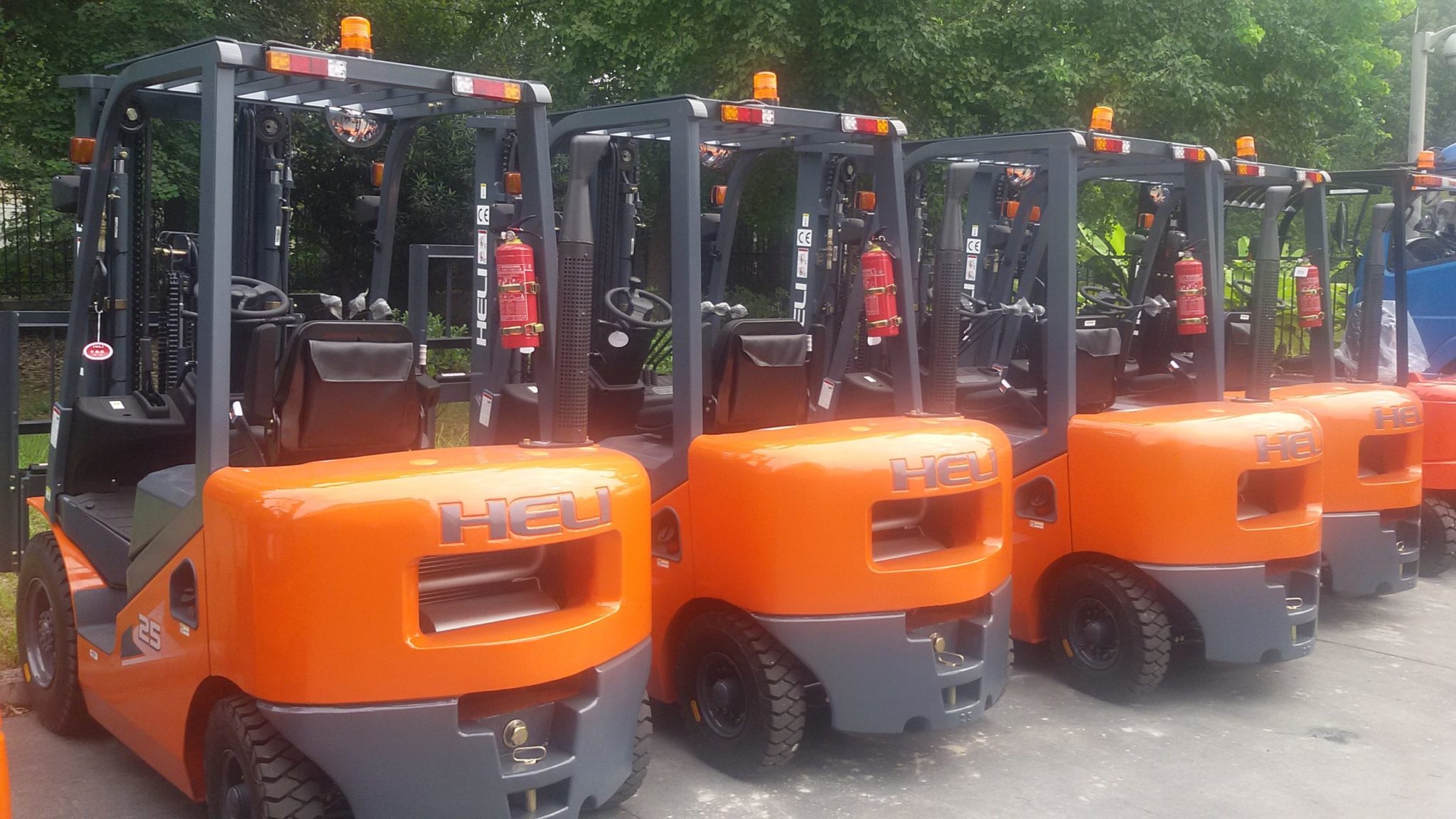

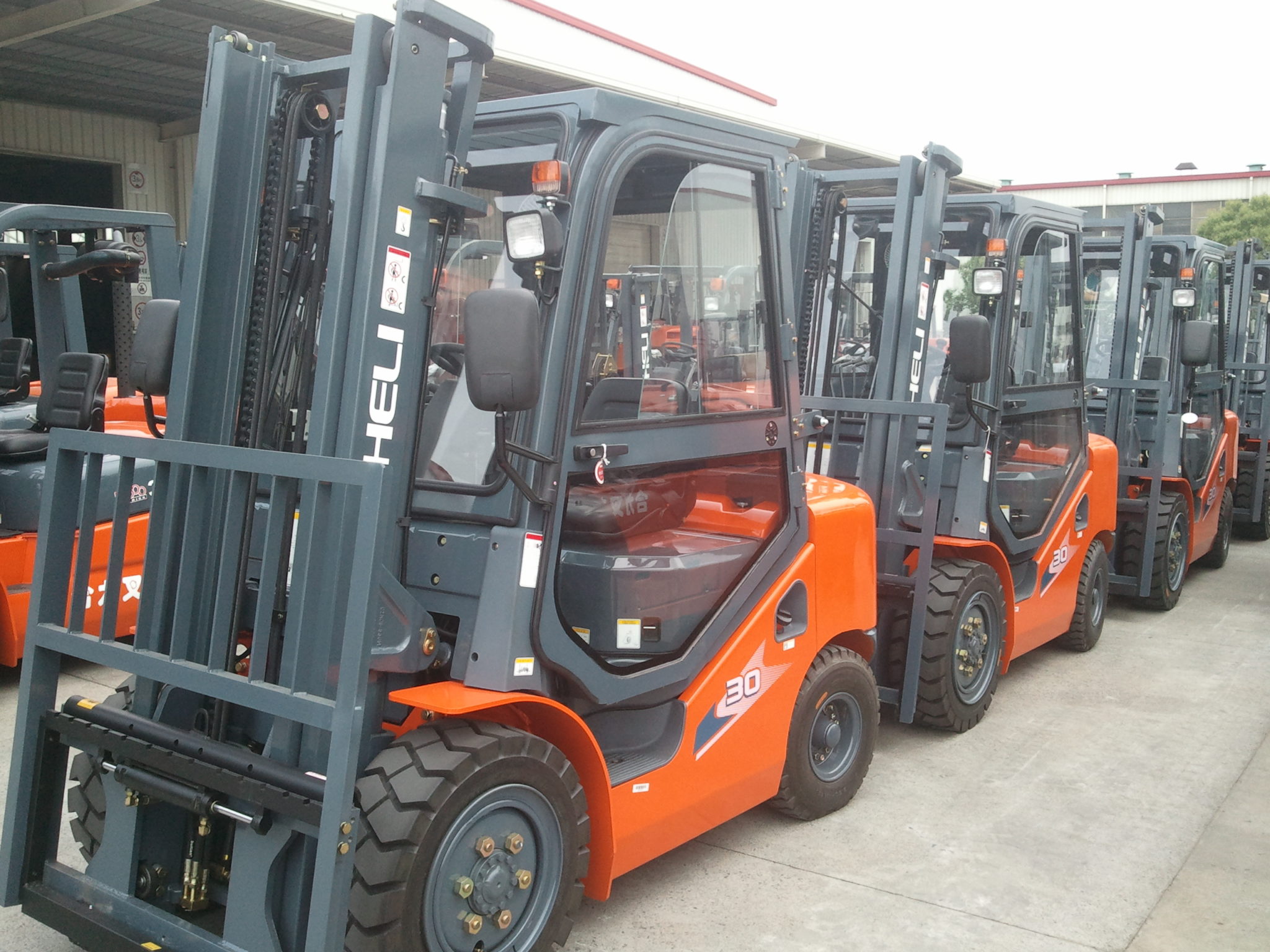

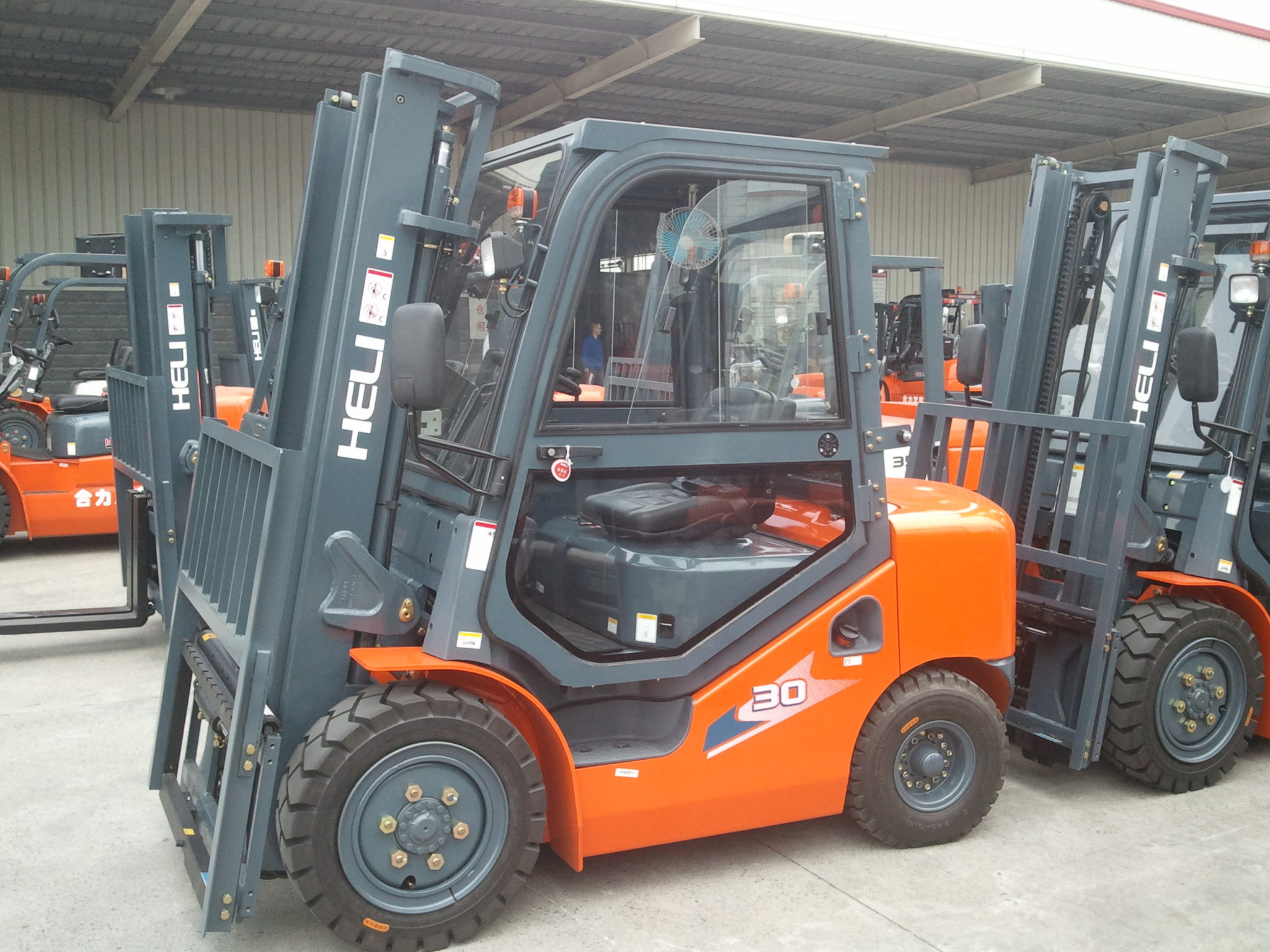

Brand new Heli H3 Series 3 Forklift. This is the diesel model with a Isuzu Japanese built Diesel motors, you can sleep sound knowing you have purchased a high quality machine.
Specifications are as the table below. Options & other attachments are available such as 2 or 3 stage masts with Fork Positioner & Sideshift.
| Model | unit | CPCD30 | CPCD35 |
| Power Unit | Diesel | ||
| Rated Capacity | kg | 3000 | 3500 |
| Load Center | mm | 500 | 500 |
| Max.Lifting height | mm | 3000 | 3000 |
| Max.Fork lifting height | mm | 4217 | 4217 |
| (with backrest) | |||
| Overall length | mm | 3800/2730 | 3845/2775 |
| (with/without forks) | |||
| Overall width | mm | 1225 | 1225 |
| Overall height | mm | 2170 | 2170 |
| (overhead guard) | |||
| Wheel base | mm | 1700 | 1700 |
| Min.Turning radius | mm | 2400/200 | 2440/200 |
| (exterior/interior) | |||
| Mast tilting angle | deg | 6/10 | 6/10 |
| Max.Travelling speed (loaded/unloaded) | Km/h | 19/21 | 19/21 |
| Lifting speed (loaded/unloaded) | mm/s | 500/590 | 460/490 |
| Lowering speed (loaded/unloaded) | mm/s | 420/400 | 420/400 |
| Max.Drawbar speed (loaded/unloaded) | KN | 19.6/16.3 | 20/16 |
| Max.Gradability | % | 22/23 | 19/23 |
| (loaded/unloaded) | |||
| Total weight | kg | 4400 | 5000 |

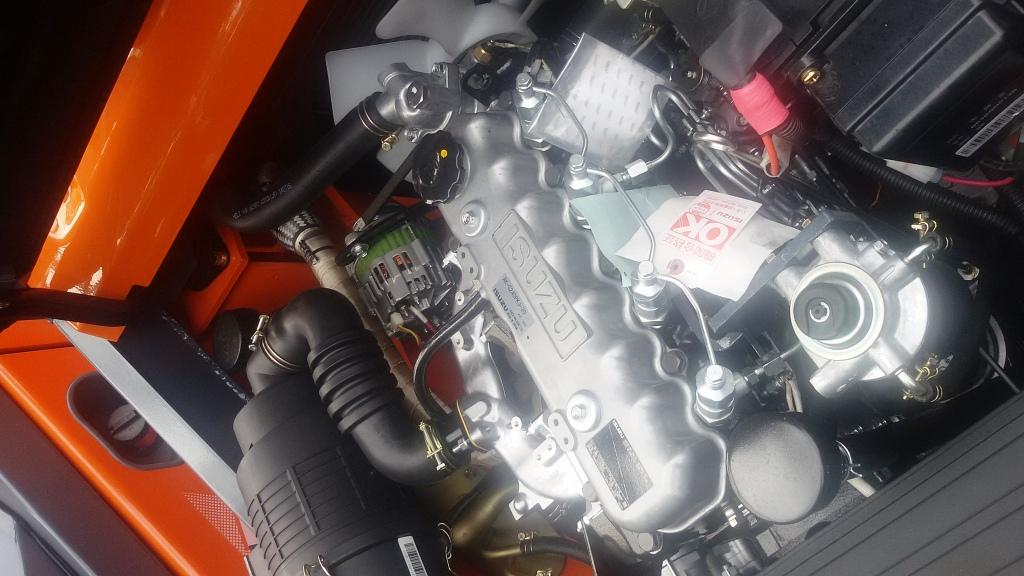

The Machine has the following engine :
| Engine Model | Rated Power | Rated Torque | Engine Displacement | Number of Cylinders | Emissions |
| ISUZU 4JG2 | 35KW | 170NM | 3.06L | 4 | Euro Stage IIIA |
